Dedicated Circuits for Heavy Tools in Workshop Power Solutions

If you own a shed on a rural property and are contemplating its conversion into a fully operational workshop, prioritising the electrical setup is essential. Utilising a MIG welder, air compressor, and table saw on the same circuit as your home can result in significant complications, such as frequent breaker tripping, flickering lights, and potentially dangerous overload situations that threaten both safety and functionality.

This detailed guide addresses the vital aspects of wiring a dependable workshop in the rural regions of the Mid North Coast. We will delve into the necessity of dedicated circuits, sub-boards, and the advantages of three-phase power for heavier machinery. If your requirements are limited to basic power needs—such as lighting and a few outlets—please refer to our guide on Shed Wiring on Acreage for a suitable starting point. This article specifically targets workshops that demand substantial power for intensive tasks.

Recognise the Significance of Dedicated Circuits for Workshop Power

Many homes operate various power outlets on shared circuits, which is generally adequate for low-power devices like kettles and televisions. issues arise when attempting to operate a 32-amp MIG welder alongside an air compressor. Without proper management, this can lead to serious complications.

Reflect on the possible consequences of connecting heavy machinery to household circuits:

• Frequent breaker tripping — A welder drawing over 30 amps on a 20-amp circuit will trip the breaker instantly or, worse, cause the wiring to overheat before the breaker can respond.
• Voltage drops — Extended cable runs from the main board to the shed can result in voltage sag, leading to higher operating temperatures, slower performance, and accelerated wear on your tools.
• Power disruptions in the home — Your partner may face power loss in the kitchen due to the compressor’s startup, often leading to unwelcome discussions.
• Increased fire risks — Overloaded wiring within walls and along cable runs is a primary cause of electrical fires in rural settings.

Establishing dedicated circuits can effectively eliminate these challenges. Each heavy tool should have its own dedicated circuit, appropriately sized for its load, along with individual breaker protection. This arrangement prevents any shared overloads.

Assess the Power Consumption of Common Workshop Equipment

Before your electrician can create a suitable circuit layout, it is essential to comprehend the power requirements of your equipment. Below is a summary of the typical power consumption for common workshop tools:

• MIG welder — Requires between 15A and 32A depending on the model. Larger 240V welders typically operate at the higher end. Three-phase units will have varying power needs (more details later).
• Air compressor — Consumes around 10A to 15A. The startup surge can be considerable—compressor motors often draw three to four times their running current for a few seconds during startup.
• Table saw — Generally utilises between 10A to 15A for a quality cabinet saw. Less expensive contractor saws may draw less power, but you are likely not looking for a budget option.
• Lathe (wood or metal) — Similar to table saws, these usually require between 10A and 15A, with metal lathes typically being at the higher end.
• Dust extractor — Approximately 10A for a single-phase unit. It must operate continuously while using other tools, necessitating its own circuit.
• Plasma cutter — Draws between 20A and 30A, similar to a welder, thus requiring a dedicated circuit.

When summing the power requirements, it becomes clear that a single 20-amp circuit from the house will not be adequate. A well-equipped workshop can easily necessitate 80 to 100+ amps across all circuits when fully operational, underscoring the need for a comprehensive electrical plan.

Choose the Correct Circuit Breaker Size and Incorporate RCD Protection

Every circuit in your workshop requires a breaker that matches the cable size and anticipated load. Your electrician will calculate this based on your equipment, but as a general guideline, consider the following:

• 15A or 20A circuits — Ideal for general power points, dust extractors, lighting circuits, and lighter tools.
• 32A circuits — Necessary for welders, plasma cutters, and other heavy single-phase machinery that requires significant power.
• Three-phase breakers — These should be sized according to the specific requirements of the equipment (details below).

RCD protection is essential. In compliance with AS/NZS 3000 (the Australian Wiring Rules), all power and lighting circuits must include RCD (safety switch) protection. This legal requirement aims to safeguard against the high-risk nature of workshop environments.
Concrete floors, metal tools, dust, and moisture elevate the likelihood of earth faults. RCDs swiftly disconnect power if a current leak to earth occurs, potentially distinguishing between a minor shock and a serious injury.

Typically, your electrician will implement a combination of RCDs and MCBs (miniature circuit breakers), or RCBO units that encompass both functionalities. RCBOs are particularly beneficial in workshops because a fault in one circuit does not disrupt power to others, enhancing the reliability of your electrical system.

Install a Dedicated Sub-Board to Cater for Your Workshop's Electrical Requirements

Rather than running multiple individual cables back to the main switchboard, installing a dedicated sub-board in your workshop presents a more efficient solution. The advantages include:

• Shorter cable runs — One heavy feed cable connects from the house (or a separate meter) to the workshop board, followed by shorter runs from the sub-board to each outlet. This arrangement minimises voltage drop and reduces cable costs.
• Simplified fault diagnosis — Each circuit is clearly labelled and easily accessible within the workshop. If a breaker trips, there is no need to return to the house to reset it, improving efficiency.
• Future expansion — A properly sized sub-board allows for the addition of more circuits in the future, making it simple to incorporate new tools later.
• Isolation capability — You can shut off all workshop power from a single main switch without affecting the house's electricity, which is a crucial safety feature.

If your house switchboard is outdated or at full capacity, an upgrade may be necessary to effectively support the workshop sub-board. Older ceramic fuse boards are unlikely to handle the increased load safely.

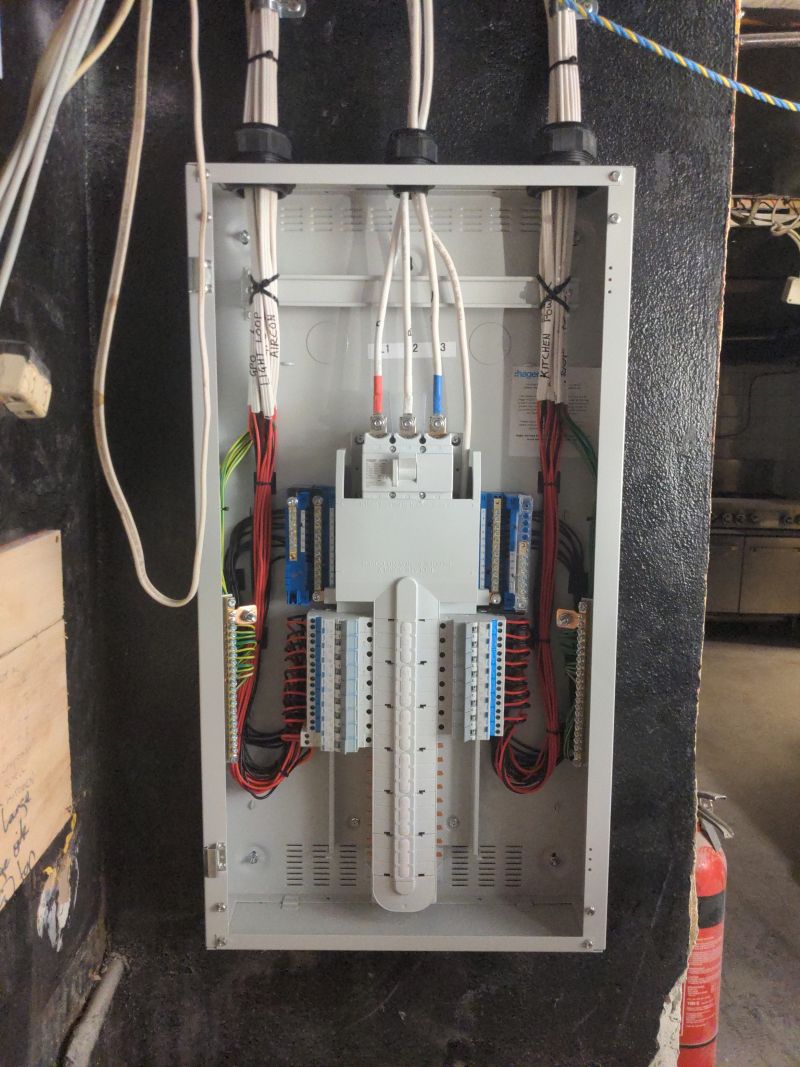

A typical workshop sub-board setup consists of a main switch, individual RCBOs for each circuit, a dedicated lighting circuit, and a surge protection device. We will size the incoming feed cable based on the total expected load plus a buffer for future additions to ensure long-term efficiency.

Create a Comprehensive Lighting Strategy for Your Workshop

Sufficient lighting is vital for safety in your workshop. Clear visibility is essential, particularly when working with sharp blades and hot materials. Below are some critical lighting considerations:

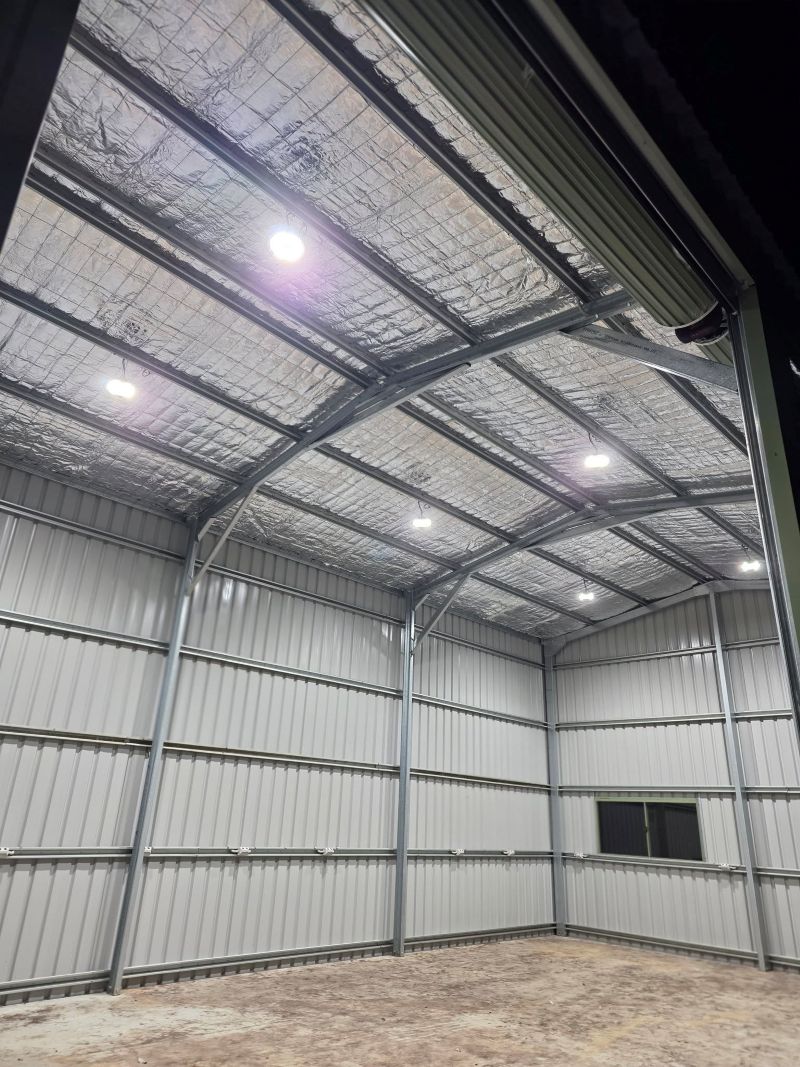

• High-lumen LED battens — LED panels or battens provide bright, even illumination throughout the area. Aim for a minimum of 500 lux at bench height to ensure visibility.
• Dust-proof fittings — Standard lights can become obstructed with sawdust and metal shavings. Opt for IP-rated fittings that are dust and moisture resistant for durability and safety.
• Task lighting at workstations — While overhead lighting covers the general area, focused lighting at the workbench, lathe, and drill press is essential for precision tasks, enhancing productivity and safety.
• Separate lighting circuit — Lighting should operate on its own circuit, ensuring you still have illumination if a power circuit trips. Being left in the dark next to a running table saw poses a significant safety risk.

We have extensive experience with lighting layouts in commercial spaces. Our team can assist you in creating a workshop lighting plan that significantly enhances your working environment while adhering to safety standards.

Plan for Efficient Ventilation and Dust Extraction Circuits

When engaged in woodworking or welding, ensuring proper ventilation is as critical as having sufficient electrical power. Dust extraction systems and exhaust fans require dedicated circuits due to several important factors:

• Continuous operation — Your dust extractor must run whenever you are cutting. It cannot share a circuit with the tool it serves, as this would compromise safety and effectiveness.
• Motor startup loads — Dust extraction fans and collectors can experience significant startup surges, similar to compressors, necessitating dedicated circuits.
• Interlocked switching — In a well-designed workshop, the dust extractor can be wired to activate automatically when specific tools are powered on. This requires careful circuit design and planning.

Plan for at least one dedicated 15A circuit for dust extraction and another for general ventilation to ensure proper airflow. If you are utilising a cyclone-style dust collection system, it may require a 20A circuit based on motor specifications.

Leverage the Benefits of Three-Phase Power for Heavy Equipment

When involved in intensive metalwork or operating large compressors (5HP+) or commercial-grade woodworking machinery, single-phase power may reach its limits. Three-phase power offers several distinct advantages:

• Increased power capacity — Three-phase motors are more efficient and provide greater power without the excessive startup surges commonly associated with single-phase motors.
• Support for larger welders and plasma cutters — Industrial MIG/TIG welders and CNC plasma tables typically operate on three-phase power, ensuring optimal performance.
• Smoother operation — Three-phase motors operate more smoothly and run cooler, extending the lifespan of your tools and enhancing overall efficiency.

Access to three-phase power in rural regions of the Mid North Coast depends on availability at the street level. Some properties may already have a three-phase supply, while others might require a phase converter or a new connection from Essential Energy.
For further details, refer to our guide on Do I Need Three-Phase Power on My Property?

If three-phase power is accessible, your workshop will necessitate the installation of a three-phase switchboard equipped with properly rated breakers and an effective earthing system to ensure safety and compliance.

Protect Your Equipment with Surge Protection

Tools featuring electronic controls, variable frequency drives (VFDs), digital displays, and inverter welders are particularly vulnerable to voltage spikes. Your workshop generates surges every time a large motor starts or stops. Coupled with the voltage instabilities often present in rural power lines, your equipment is at considerable risk.

Installing a surge protection device (SPD) at the sub-board can intercept voltage spikes before they impact your tools. This is a cost-effective measure compared to the potential expense of replacing the electronic components of a $3,000 welder or CNC controller.

If your property is susceptible to storms—which is common in the Mid North Coast—we recommend adding surge protection at the main switchboard to guard against lightning-induced surges that could damage your equipment.

For properties relying on a generator for backup power, incorporating a generator changeover switch ensures smooth transitions between mains power and generator supply without risking back-feeding or damaging connected equipment.

Incorporate Additional Features for Your Workshop Fit-Out

Consider integrating several more features into your workshop wiring from the beginning:

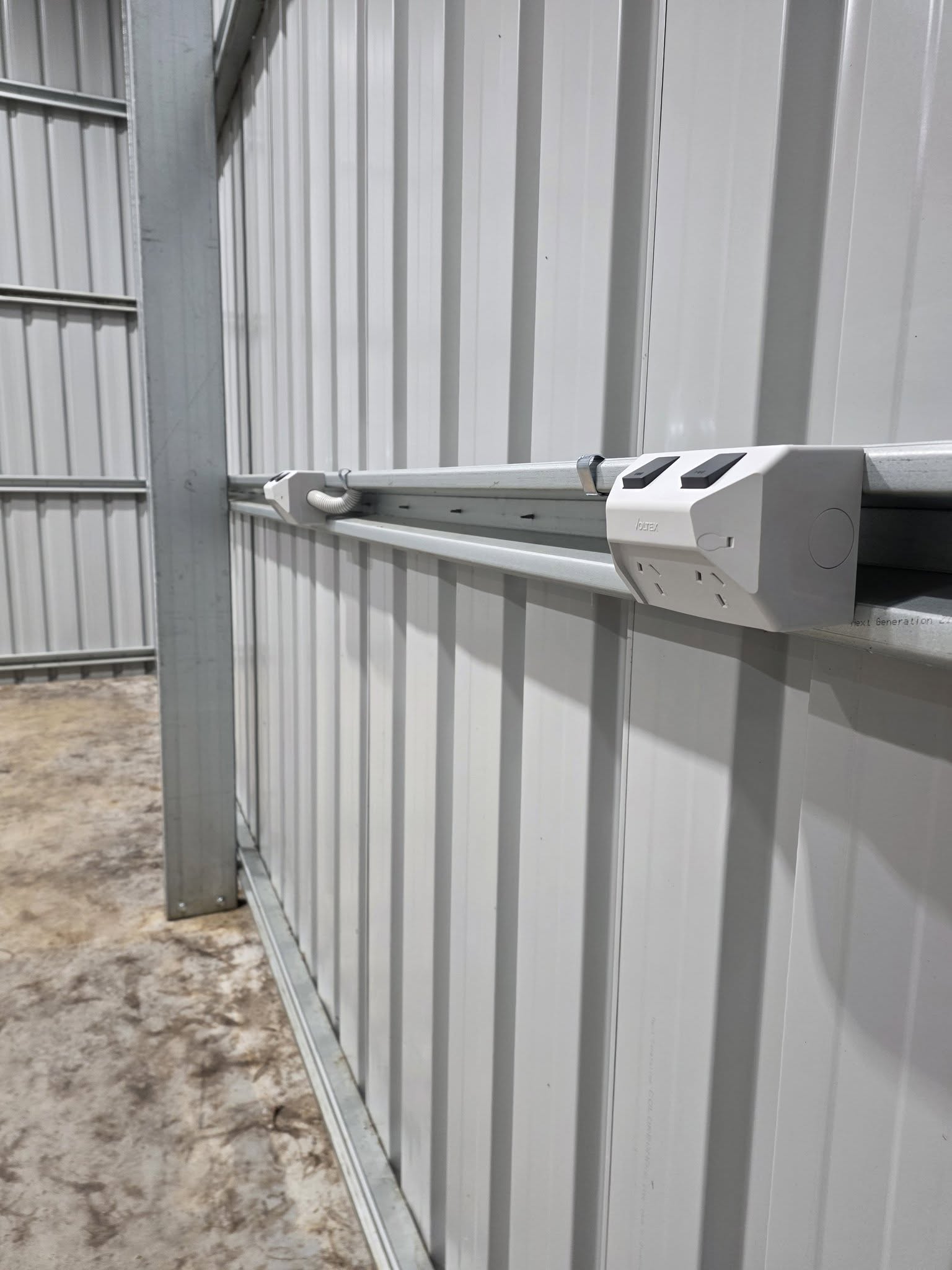

• Ample power points — Install more power points and switches than you anticipate needing. Use weatherproof GPOs if the workshop is open-sided. Consider double power points at every bench and outlets conveniently located near key machinery.
• Data and communications — If you require internet access for streaming music, operating a CNC machine, or monitoring security cameras, plan for data and TV wiring concurrently with the electrical setup. It is significantly easier to run cables during the initial fit-out than after the walls are completed.
• External lighting — Include floodlights outside the workshop to facilitate access during early mornings and late evenings, especially in rural areas that lack sufficient street lighting.
• EV or equipment charging — If you are using electric equipment (such as battery-powered tools, an electric vehicle, or an electric quad bike), implement a dedicated charging circuit to prevent overloads on general outlets.

Estimate the Costs for Your Workshop Electrical Fit-Out

Cost estimates will fluctuate based on the size of the workshop, the number of circuits required, and whether three-phase power is necessary. As a rough guideline for the Mid North Coast, consider the following:

• Basic single-phase setup (sub-board, 4–6 circuits, lighting) — Starting from $5,000
• Complete dedicated sub-board (8–12 circuits, multiple heavy tool circuits, dust extraction, comprehensive lighting design) — Starting from $10,000
• Three-phase workshop build (three-phase supply, dedicated board, heavy equipment circuits, complete fit-out) — Starting from $15,000+

These figures represent starting points. Complex layouts, lengthy cable runs from the mains, or the need for upgrades from Essential Energy will increase overall costs. We provide transparent quotes based on your specific workshop and equipment needs—there are no hidden fees involved.

Important Reminder: All Electrical Work Must Be Performed by Licensed Professionals

This is a vital point to emphasise. In New South Wales, all electrical wiring work must be conducted by a licensed electrician. This includes the installation of new circuits, sub-boards, power points, and the connection of equipment. There is no DIY exemption for electrical work, even on your own property, to ensure safety and compliance.

Hack-It Electrical Solutions holds NSW Electrical Contractor Licence #230609C and operates throughout Bellingen, Coffs Harbour, Sawtell, Nambucca Heads, Woolgoolga, Urunga, Dorrigo, Valla Beach, and Toormina.

Engaging in unlicensed electrical work can void your insurance, create significant safety hazards, and lead to substantial fines. If someone offers to perform the work cheaply without a licence, it is not a saving—it is a risk that could result in severe consequences.

Answers to Your Frequently Asked Questions

Can I Use My Welder with a Standard Power Point?

Small stick welders (up to approximately 140A output) can indeed be used with a standard 10A or 15A power point. Any larger units require a dedicated circuit. A MIG welder with a capacity of 200A or more connected to a 10-amp GPO will trip the breaker immediately or potentially cause the wiring to overheat if the breaker is faulty. If you are welding regularly, it is essential to have a dedicated 32A circuit installed for safety and efficiency.

How Many Circuits Are Typically Needed in a Workshop?

The number of circuits required will depend on your tools, but a well-equipped workshop generally necessitates a minimum of 8 to 12 circuits. This includes dedicated circuits for each heavy tool (welder, compressor, plasma cutter), general power point circuits, dust extraction, lighting, and a couple of spares for future additions. We tailor the design based on your specific equipment list to ensure optimal functionality.

Is Three-Phase Power Necessary for a Home Workshop?

Not necessarily. Most home workshops function adequately on single-phase power with dedicated circuits. Three-phase power is only required if you are using commercial-grade equipment, such as large compressors (5HP+), three-phase welders, or CNC machines. Check out our complete guide on Do I Need Three-Phase Power on My Property? to ascertain if it aligns with your needs and operations.

Can My Existing Switchboard Support a Workshop?

It is possible. If your house switchboard is modern and has spare capacity, we can often connect a workshop sub-board to it. if it consists of an outdated ceramic fuse board or is fully loaded, an upgrade will be necessary before proceeding. Our team will evaluate this during the quoting process to ensure your workshop is adequately powered.

What Is the Typical Duration for a Workshop Electrical Fit-Out?

A basic single-phase setup can typically be completed within 1 to 2 days. A full fit-out encompassing multiple heavy circuits, three-phase power, and comprehensive lighting usually takes 3 to 5 days, depending on the complexity and distances for cable runs. We will provide a timeline along with your quote to keep you informed throughout the process.
