Flat Metal Roofs: Understanding Leaking Issues

How to Identify and Fix Common Flat Roof Issues for Central Coast Homes

Although flat roofs are not the most common choice in the Australian roofing market, their acceptance is growing among both residential and commercial buildings. These structures are frequently seen on patios, carports, walkways, and other areas requiring a low-pitch roofing solution. In instances of minimal incline, flat roofs may be referred to as “skillion roofs.”

Flat roofs offer a range of benefits, yet they also present specific challenges that homeowners must be aware of. Recognising the typical problems associated with flat roofing systems and adopting preventive measures is crucial, especially on the Central Coast, where the coastal climate, heavy rainfall, and salt-laden air can exacerbate roofing issues.

What Factors Are Driving the Popularity of Flat Roofs Among Homeowners?

Flat roofs are increasingly favoured in both residential and commercial constructions for several compelling reasons:

• They are quicker and simpler to install, facilitating faster project completion
• They provide easier maintenance access, simplifying routine checks and repairs
• They serve as ideal platforms for solar panel installations, promoting energy efficiency

The most pressing concern associated with flat roofs is managing water drainage. Water is the primary enemy of your roof. When planning a new roof installation or updating an existing one, it is essential to consider various factors, particularly rainfall, which can vary widely across Australia's regions.

What Are the Main Drainage Challenges Faced by Flat Roofs?

Unlike pitched roofs, which allow rainwater to drain quickly into gutters, flat roofs have a minimal slope. This design can result in water accumulation that persists for extended periods. If water is not efficiently directed off the roof, it may lead to:

• Surface staining and degradation of roofing materials
• Gradual weakening of roofing components over time
• Build-up of mould and mildew, posing health risks
• Leaks that can penetrate the interior of the building

The key to addressing these challenges lies in effective roof plumbing and thoughtful design that caters to the unique challenges posed by flat roofs.

How to Maximise Drainage Efficiency in Flat Roof Designs

Before installation, a professional roofing contractor will evaluate several critical factors that impact drainage efficiency:

• Local rainfall intensity and prevailing weather patterns
• Overall roof area and specific dimensions
• Gutter configurations and effective drainage outlets
• Downpipe dimensions and specifications
• Overflow prevention options to manage excess water
• Considerations regarding roof pitch to enhance drainage

Most roofing manufacturers recommend a minimum slope of 5° for low-pitch roofs. Roofs with slopes below this threshold can jeopardise waterproofing efforts and may even void product warranties, leading to potentially costly repairs.

Standard corrugated roofing sheets, while suitable for pitched roofs, are not appropriate for very low-pitch applications. For flat roofs, specific roofing profiles designed for efficient water shedding are strongly recommended to ensure long-term performance.

What Are the Best Metal Roofing Profiles for Low-Pitch and Flat Roof Applications?

Two highly recommended roofing profiles for low-pitch and flat roofs include:

Trimdek: This adaptable profile is suitable for both roofing and wall applications. Its 28mm rib height and specially designed capillary groove enhance water tightness, even at a minimal pitch of 2°.

Kliplok: This innovative clipped roofing profile utilises hidden clips instead of screws to secure sheets. This design effectively prevents water ingress through screw penetrations, making it an excellent choice for low-pitch installations.

Selecting the appropriate roofing profile based on your roof pitch and local rainfall conditions is essential for ensuring the durability and reliability of your roofing system.

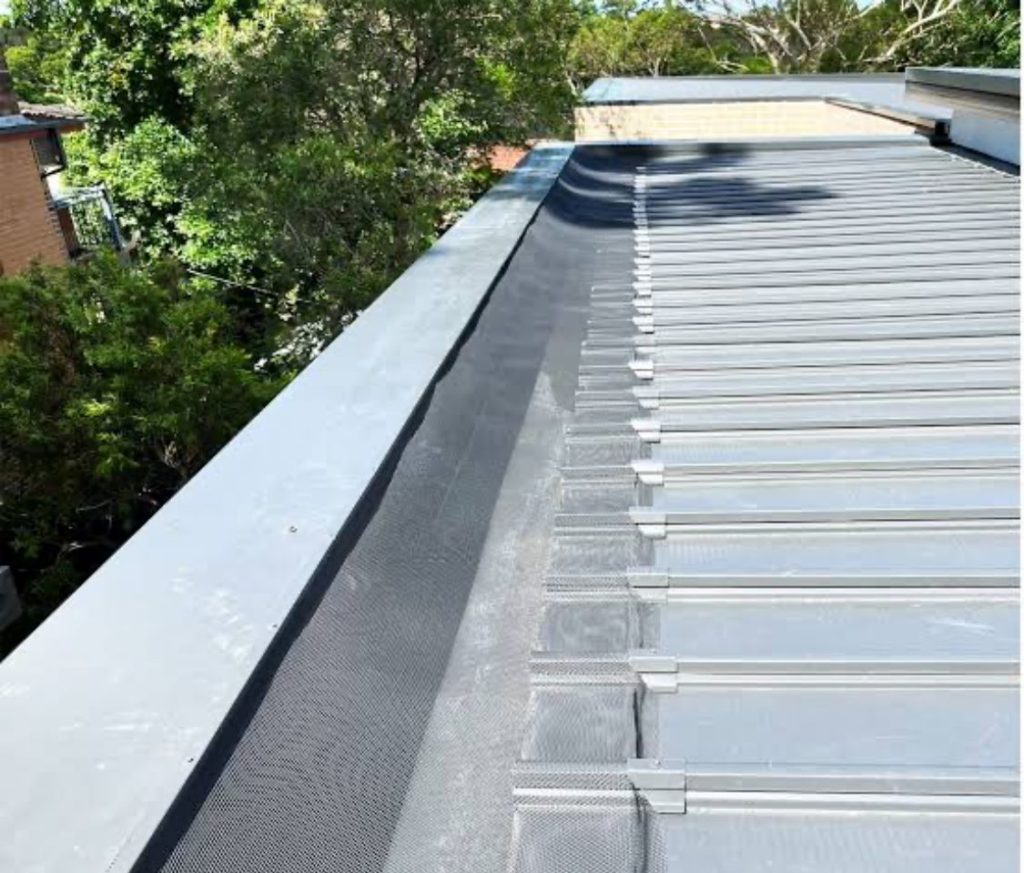

How to Manage Box Gutters and Flat Roof Drainage Effectively

On flat roofs, box gutters are commonly employed to connect roof panels to drainage outlets. Since box gutters are situated below the roof plane, they require meticulous detailing and installation to prevent blockages and water back-up issues.

Common issues associated with box gutters include:

• Build-up of debris from nearby trees and foliage
• Insufficient fall or slope that impedes water flow
• Overflowing back into the roof structure, resulting in leaks
• Blocked downpipes that hinder effective drainage

Addressing these challenges begins with proper gutter design and a commitment to regular maintenance to ensure optimal functionality.

What Should You Look For When Choosing Guttering for Your Flat Roof?

Standard gutters may not adequately handle the water flow demands of flat roofs. It is often necessary to install guttering designed to accommodate larger water capacities. Next, we will explore various drainage and overflow solutions that can be incorporated into your flat metal roof design.

• Facilitate quicker water removal during heavy rainfall
• Effectively sweep debris away with high flow capabilities
• Provide easier cleaning and maintenance options for homeowners

Our top recommendation for gutters is self-cleaning designs, ideal for flat metal roofs while also offering an aesthetically pleasing appearance!

We advocate for a half-round gutter due to its superior water-carrying capacity, enabling faster drainage. This design efficiently sweeps away silt and sludge build-ups with each rainfall, ensuring a cleaner system over time.

For optimal performance on flat roofs, gutters should be properly sized based on local rainfall patterns and connected to appropriately sized downpipes (for example, 100mm × 75mm) that can manage significant water volumes. In areas with abundant trees, installing leaf diverters or guards can significantly reduce blockage issues.

How Do Flashings Prevent Water Entry at Roof Joints?

Flashings are crucial components fitted at joints where roof sheets intersect with walls or other surfaces, including around skylights, chimneys, and internal corners. On flat roofs, correct flashing installation is vital, as water can accumulate around these joints if they are not properly sealed.

To effectively prevent water ingress:

• Flashings must be meticulously shaped to conform to the roof profiles
• Waterproof sealants should be applied at all joints to ensure tight seals
• Extra care is needed at corners and seams where water may collect

By ensuring that flashings and sealants are installed correctly, you can achieve a watertight roof, even during heavy rainfall. Our team takes extra precautions during installation and utilises high-quality waterproof sealant to prevent water from pooling in these vulnerable areas.

Why Is Regular Maintenance Essential for the Longevity of Flat Roofs?

Flat roof systems, particularly those connected to box gutters, require routine inspections and maintenance to ensure their effectiveness. This includes:

• Removing debris from gutters and box gutters to ensure clear drainage
• Checking downpipes for any signs of potential blockages
• Inspecting roof surfaces for small cracks or areas where water may pond
• Re-sealing flashings as necessary to maintain waterproof integrity

Conducting regular maintenance checks can prevent the necessity for more extensive repair work in the future, thereby extending the lifespan of your roofing system.

Discover the Advantages of Properly Installed Flat Roofs

When designed and installed by skilled metal roofing professionals, flat roofs deliver:

• A contemporary, sleek architectural aesthetic that enhances property value
• Optimised space for patios, decks, or utility services, maximising utility
• Convenient access for maintenance or solar panel installation, simplifying upkeep

Moreover, flat roofs can seamlessly integrate with existing pitched roof structures when drainage and detailing are effectively managed, enhancing both the overall functionality and appearance of the building.

How to Ensure You Get the Right Flat Roof Installation on the Central Coast

A well-designed and expertly installed flat metal roof can provide both functionality and long-lasting durability in the coastal environment. Whether you are undertaking a new construction project, extending a patio, or adding a carport, selecting the right roofing system and drainage design is crucial for optimal performance and longevity.

Contact AWS Roofing today to request a quote and secure your installation date. With another wet summer approaching, now is the perfect time to address any roofing issues and prevent more significant problems in the future.

Flat Roof Frequently Asked Questions: Do Flat Roofs Experience More Problems Compared to Pitched Roofs?

Flat roofs can indeed encounter more drainage challenges if they are not designed correctly. Without an adequate slope, water may pool or leak into the building structure. However, when constructed with the appropriate pitch, roofing profile, box gutter design, and flashing techniques, flat roofs can be just as resilient as pitched roofs.

What is the Optimal Roof Pitch for a Flat or Low-Slope Roof?

Most roofing manufacturers recommend a minimum pitch of 5 degrees for metal flat roofs. Profiles such as Trimdek and Kliplok can function effectively at pitches as low as 2 degrees when installed correctly and properly sealed against water. Anything below 5 degrees necessitates careful selection of materials and detailed guttering strategies to ensure proper drainage.

Is it Possible to Install Solar Panels on a Flat Metal Roof?

Absolutely, flat metal roofs are ideal for solar panel installations. The accessible surface simplifies the installation process and enhances safety. Typically, panels are tilted on angled mounts to optimise sun exposure and prevent water from pooling underneath, ensuring efficiency in energy production.

What Exactly Are Box Gutters and Why Are They Utilised on Flat Roofs?

Box gutters are internal roof gutters positioned below the roof line, often located between roof sections or along parapet walls. They are commonly used on flat roofs to effectively manage runoff, but they must be carefully sized and sloped to avoid blockages and overflow problems that could compromise the roof's integrity.

Do Flat Roofs Need Special Gutters or Downpipes?

Yes, flat roofs generally require higher-capacity gutters and larger downpipes to manage effective water drainage. Half-round gutters and 100x75mm downpipes are frequently employed to enhance flow and prevent water accumulation. Additionally, overflow devices and leaf diverters may be beneficial in reducing maintenance needs.

What is the Lifespan of a Flat Metal Roof?

When installed correctly, equipped with proper drainage, and maintained regularly, a flat Colorbond or Zincalume metal roof can last anywhere from 20 to 30 years or even longer. Keeping box gutters clear and resealing flashings as required will significantly extend the roof's lifespan and performance.
